EC Series Control Panel

Product > EtherCAT Bus Control Panel > EC Series Control Panel > EC-8105
EC-8105
EC-8105

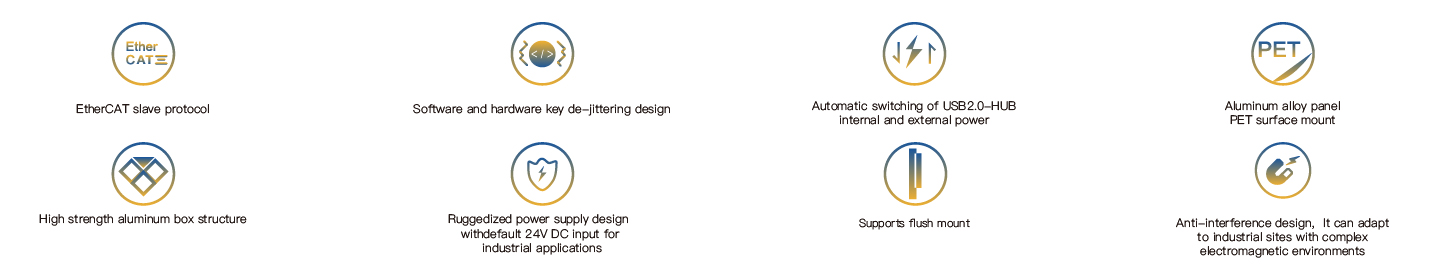

EC-8105 is an EtherCAT industrial bus operation panel. It is applicable to CNC numerical control systems and can achieve precise and reliable human-machine interaction. It is equipped with 63 operation keys, 63 status indicator lights, 2 pulse handwheel interfaces (1 differential and 1 single-ended), 2 256-range potentiometers, 21 range band selection switches for range setting, 1 three-range key switch, 12 isolated GPO and 12 isolated GPI, as well as an independent emergency stop switch. Default DC 24V input (dual main and backup channels). The whole machine adopts an anti-interference design, which can effectively resist the interference of high-power motors, servo systems, etc. in industrial sites, providing a good operating experience.

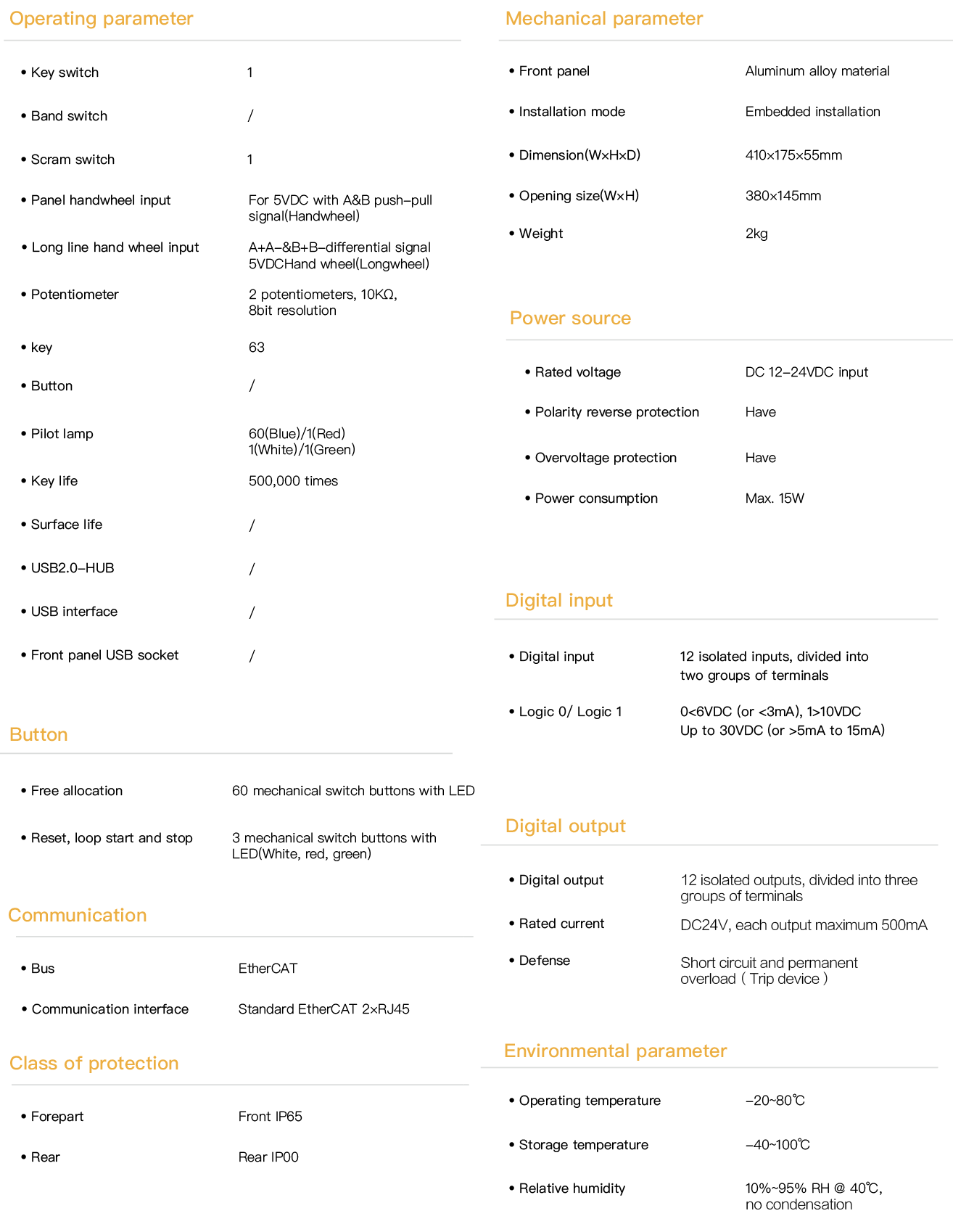

Product detailed specifications（EC-8105)
Product Quotation Information

XSubmit contact information for product download information

XOrdering information
