EC Series Control Panel

Product > EtherCAT Bus Control Panel > EC Series Control Panel > EC-8102
EC-8102
EC-8102
EC-8102 is a high-performance operation panel based on the EtherCAT industrial Ethernet bus, achieving high-speed and reliable human-machine interaction. As a dedicated HMI operation panel, it is equipped with 34 operation keys, 34 status indicator lights,1 21-speed feed band switch,1 USB direct access female port,1 4-port USB2.0-HUB, as well as an independent key switch, start button, stop button and emergency stop switch. The default DC input is 24V. The power connector adopts a spring-pressed green terminal to prevent accidental detachment during use. The whole machine adopts an anti-interference design, which can effectively resist the interference of high-power motors, servo systems, etc. in industrial sites, ensuring a good touch experience. Adapted to various industrial sites with complex electromagnetic environments, the EC-8102 achieves embedded installation through hooks, which is convenient for installation and maintenance.

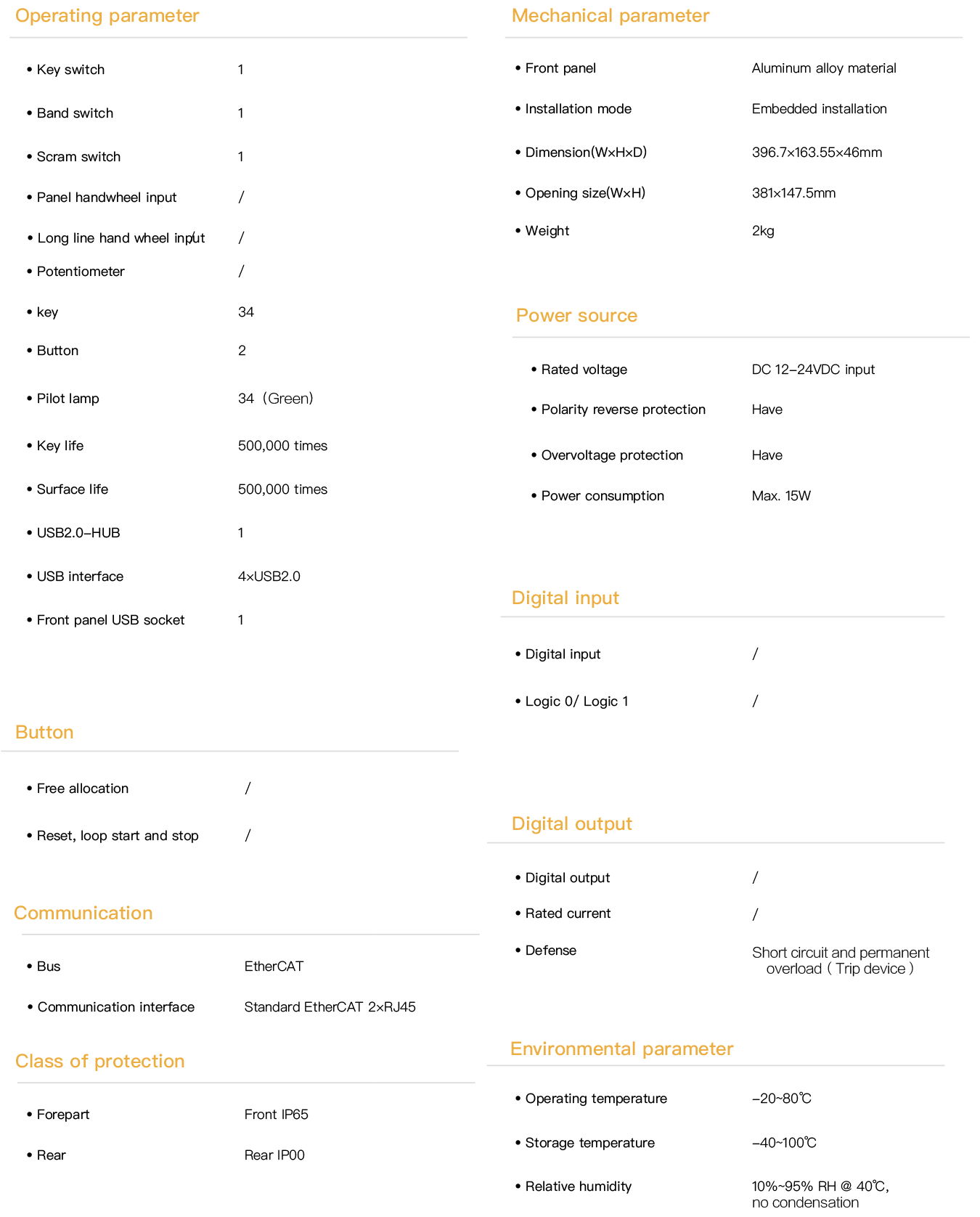

Product detailed specifications（EC-8102)
