EC Series Control Panel

Product > EtherCAT Bus Control Panel > EC Series Control Panel > EC-8103
EC-8103
EC-8103
EC-8103 is a high-performance operation panel based on the EtherCAT industrial Ethernet bus, achieving high-speed and reliable human-machine interaction. As a dedicated HMI operation panel, it is equipped with 45 operation keys, 45 status indicator lights, 2 21-position Gray code band switches, 1 4-port USB2.0-HUB, 1 key switch, 1 emergency stop switch, and 4 button switches with lights. The default power input is 24V DC. The power connector adopts a spring-pressed green terminal to prevent accidental detachment during use. The whole machine adopts an anti-interference design, which can effectively resist the interference of high-power motors, servos, etc. in industrial sites. Ensure a good touch experience and adapt to various industrial sites with complex electromagnetic environments. The EC-8103 achieves embedded installation through hooks, which is convenient for installation and maintenance.

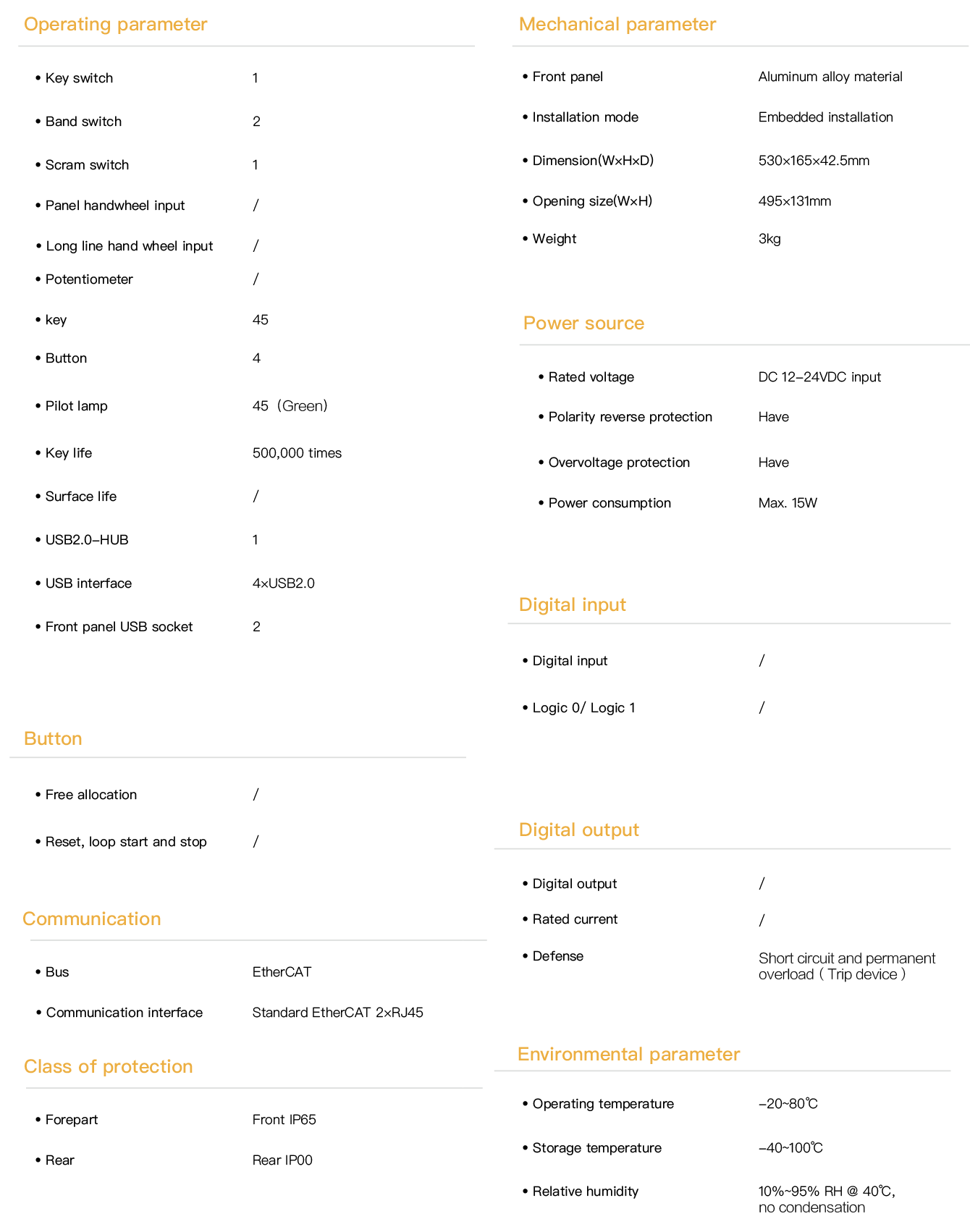

Product detailed specifications（EC-8103)
Product Quotation Information

XSubmit contact information for product download information

XOrdering information
